TouchPro
HWM
The Touch Pro from HWM represents a breakthrough in leak detection technology. It features improvements throughout the leak noise processing path to provide improved performance; especially in the most difficult leak detection situations. This enables it to give the best performance in traditionally difficult conditions, such as on plastic and large diameter pipes.
EASY TO USE

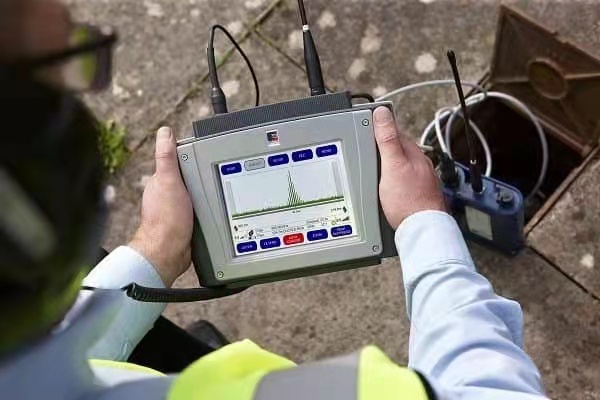

Touch Pro features a high visibility full-colour VGA touch screen to greatly improve data entry and the quality of graphical presentation. The intuitive user interface enables the unit to be operated with minimal key presses and the helpful step by step menu system easily guides the user through the correlation process.
HIGH-QUALITY PERFORMANCE
The large screen clearly displays correlation results and supportive information, and the innovative high contrast mode enables good visibility even in bright sunshine.
The unique Automated Filtering Intelligence System (AFIS) automatically runs up to 55 different filter combinations on each correlation, checking the quality of the result and optimizing the filters until the best result is obtained. AFIS works with both live and pre-recorded correlation data and makes manual filter setting a thing of the past by effectively building an “expert user” into the unit.

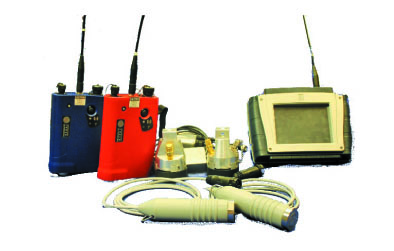

The outstation is compact with upgraded high quality, long-range radio transmission. It also features a magnet to secure onto metallic surfaces.
ROBUST FOR LONG-TERM USE

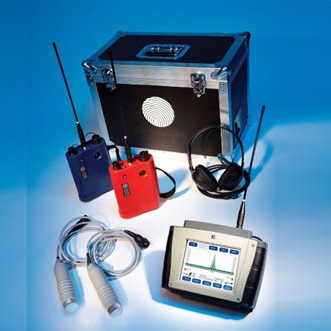

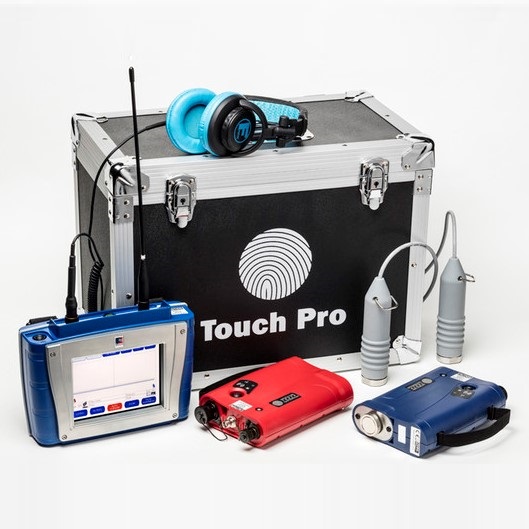

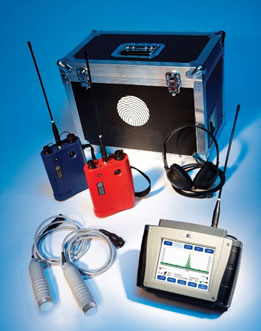

The specially designed robust case not only carries and protects all components, but it also allows the base station and outstations to be charged from a single power lead and displays charging status. Units can be stowed with sensors still connected for faster deployment in the field.
Using our extensive experience of correlator design and manufacture, HWM has created an easy to use system that delivers the best all-round performance at a highly competitive price.
KEY FEATURES
- Upgraded processing electronics
- Upgraded high quality, long range telemetry
- AFIS - Automatic Filtering intelligence system
- High visibility colour VGA Touch screen
- Easy to use
- Compact, portable design
- Unique, robust construction
- In case charging
- High Impact PC/ABS Casework
- Faster and cleaner correlation results
- Optional specifically designed hydrophone enables it to give the best performance in traditionally difficult conditions, such as on plastic and large diameter pipes
CONTROL UNIT
| Display | High Visibility Full Colour VGA |
| Dimensions | Height to Top: 90mm Width: 250mm Depth: 180mm |
| Weight | 1.9kg |
| Operating Temperature | -15°C to +50°C |
| Environmental | IP65 |
| Enclosure | High Impact PC/ABS plastic |
| PC Download | Via PC software, Windows-compatible software |
| Battery | Rechargeable Lithium ion batteries, field replaceable. 12 hours battery life. Rechargeable in case |
| Antennae | External antenna/magmount |
OUTSTATION
| Connections | Headphones, External antenna, Charging |
| Battery | Rechargeable Lithium ion batteries, field replaceable. 12 hours battery life. Rechargeable in case |
| Antennae | External antenna |
| Dimensions | L 200mm W 135mm D 50mm |
| Weight | 0.87kg |
| Environment | IP65 |
| Housing | High-impact PC/ABS plastic |
| Connectors | Military specification Amphenol |
SENSOR
| Environment | IP68 |
| Connection |
Military spec connector |

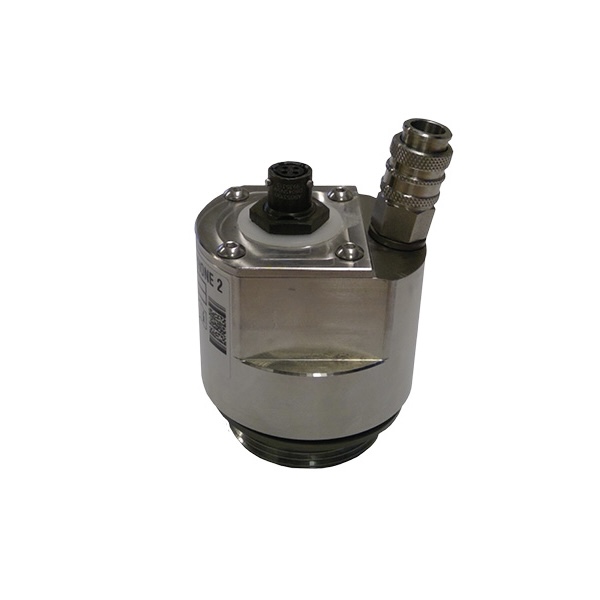

| Hydrophones |
Available as option with tuned auto gain interface |
CASECharging |
In case charging through mains or 12vvehicle supply Case indicates charge for all components |
| Operating Temperature | -20 to 60°C( -5 to 140°F ) |
| Storage Temperature |
-40 to 60°C ( -40 to 140°） |
| Ingress Protection |
IP68 |
| Unit Gross Weight |
1 . 054kg ( 2l 3oZ） |
| Safety Tested |
to 25 Bar |
| Material : Body |
Stainless Steel 316 - DWI regulation 31 |
| Material : Sensor |
Araldite DFB / HY951-BS 6920 : 2014 |
