APPLICATION

Once installed, leak data is calculated using the proven Permalog algorithm, with all information transmitted via low cost cellular telemetry. This removes the requirement for expensive site visits and “drive by” data retrieval.

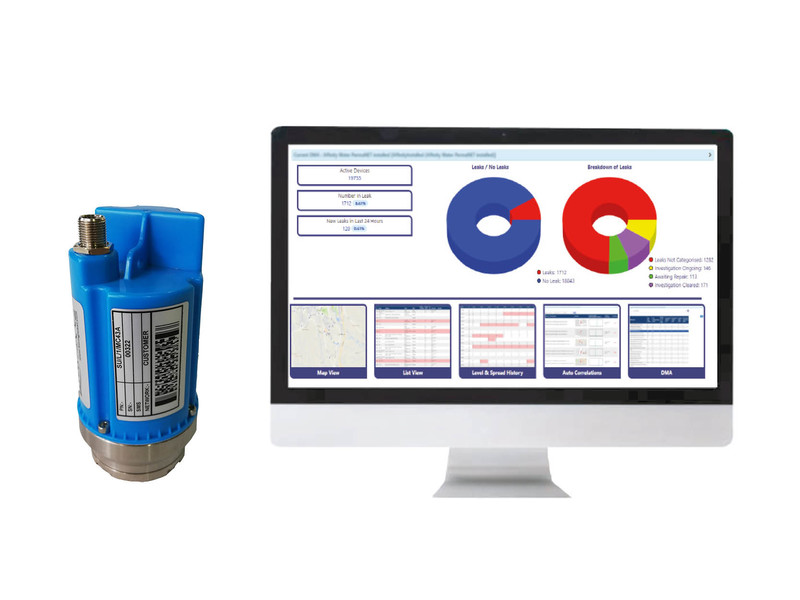

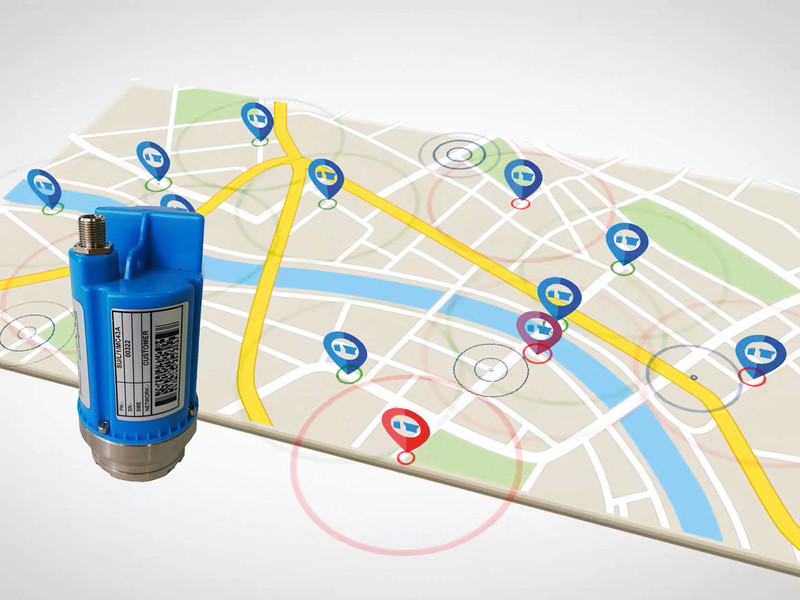

PermaNET SU allows leakage teams to monitor the status of each logger deployed from map based host software any internet enabled device using PermaNET Web.

Once the presence of a leak has been identified, secondary measures can be used to check and remove ‘false positives’, as well as localising leak position.



KEY FEATURES AND BENEFITS

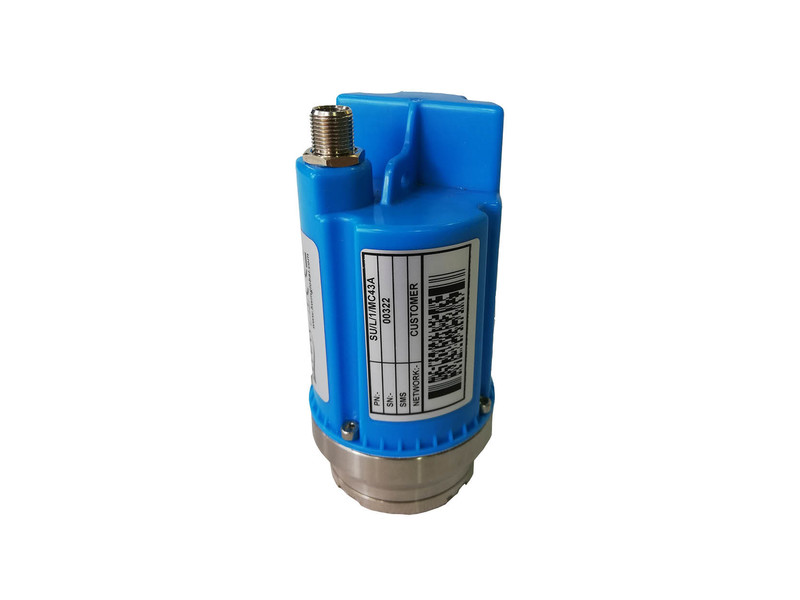

• Single compact unit: combines leak noise sensor and telemetry into a single compact unit
• Robust and durable: designed specifically for smaller and more challenging installation areas
• Quick response: enables leakage teams to respond quickly to specific locations when a leak is detected
• Installation confirmation: daily check to confirm logger orientation; will alarm if a problem is detected
• Secondary validation:
  • Aqualog - detailed noise histogram to reduce 'false positives'
  • Audio - remotely listen to the noise
  • Remote correlation to localise leak position
• Fully waterproof: the IP68 rating has been tested at 10m depth over a 24 hour period
• Easy to use: compatible with HWM Deployment app. Select features can be programmed through PermaNET Web
• PermaNET Web: software supports: -
  • Correlation
  • Map view
  • Aqualog
  • Select GIS file formats
  • Remote configuration
  • Filtering
• Easy to use: compatible with HWM Deployment app. Select features can be programmed through PermaNET Web
• External antennas: support improved signal strength (contact HWM for more information)
