Tmic

HWM

Tmic is a highly cost-effective mini water leak detection unit with a visual and audible indication of the leak. The unit fits conveniently into a pocket, making it perfect for any water specialist or plumber for an instant, on the spot leak monitoring.



Lightweight and portable, Tmic assists technicians to hear sounds on the water network which would otherwise be inaudible to the human ear. The unit is operated with a simple push button and displays a visual indication of noise levels together with excellent sound reproduction through high quality Bluetooth headphones.

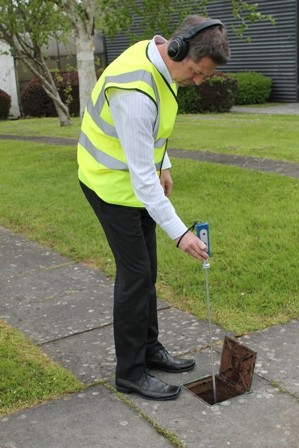

The sensor tip can be connected to a meter long rod or placed directly on the pipe or fittings. Sensitivity levels are far beyond what is possible with mechanical listening sticks.

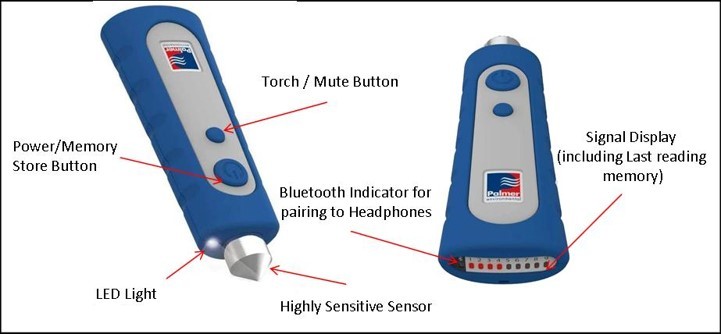

Tmic’s memory will store a noise level and show it on its LED display. By visually comparing the current and previous noise level the operator can quickly identify where the noise is loudest. The LED also displays the battery level and Bluetooth pairing status. An LED torch is incorporated into the unit for use at night or to investigate dark chambers.

The unit and its accessories are supplied in a case with precision cut foam compartments to protect in transit.

KEY FEATURES

  • High quality, clear audio monitoring
  • Lightweight and easily portable.
  • Long battery life from replaceable cells
  • Memory store of sound level for visual comparison of previous and current noise levels.
  • LED displays noise level indication, comparison with previous noise level, battery status and Bluetooth pairing status.
  • Mute sound off/on
  • Easy push button operation.
  • Range of adapters supplied to suit different applications.
  • Supplied in a small transit case.
  • Built in LED light – for night work or dark chambers
  • Wireless transmission of leak noise via Bluetooth headphones.
Construction Hand held ergonomically designed case
Temperature

Operating temperature range -10°C to +40°C

Power

3 x AAA Alkaline 1.5V (LR03 AM4) batteries supplied

Ingress Protection

IP54

Dimensions

170 x 52 x 31 mm (LxWxD)

Weight

180g (with batteries)

Headphones

Lightweight, high quality stereo headphones

DATASHEETS

Tmic Datasheet
