SoµndSens
HWM
Experience the future of leak detection with SoµndSens. A revolutionary, forward-thinking approach to accurately pinpointing leaks faster and more efficiently, tackling the critical & global challenge of water loss head-on.
SoµndSens
Product Overview

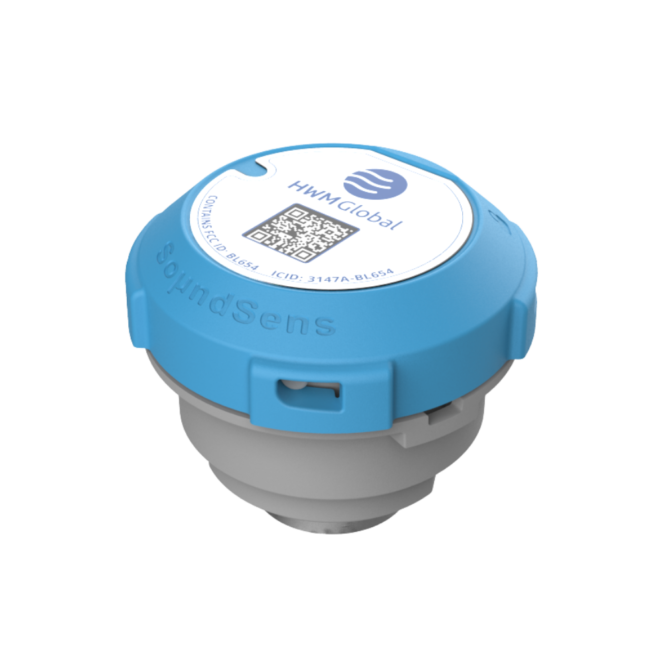

SoµndSens is a portable set of Bluetooth® programmable correlating loggers for multipoint correlation surveys, powered by our new MicroStream App. Designed to cut real losses and associated leakage emissions, it delivers broader, continuous or diagnostic monitoring with enhanced sensitivity to pinpoint widespread, hidden leaks. Built for accuracy, speed, and efficiency, SoµndSens enables targeted and resource-efficient network management, helping utilities reduce leakage, save costs, and lower emissions at scale.
Our Latest Innovation in Design & Technology, Pioneering the Future of Sustainable Water Networks
Solving the Industry's Toughest Challenges
The Hidden Leaks Behind Water-Loss
SoµndSens’ small, unobtrusive, multiple-pod design delivers an enhanced ability to further pinpoint hidden leaks detected by our in-situ acoustic loggers. Its high-performance sensors work together as multi-point correlators, detecting those quieter, hard-to-find leaks that traditional methods can often miss.
The Threat of Leakage Emissions
SoµndSens is built for a world where the water-energy-carbon link is undeniable. Designed for mass deployment, it’s wide-net approach provides richer network insight for faster leak detection and reduced leakage emissions. Its resource-efficient, low-material design cuts embodied carbon from the start.
Leakage Drains Resources & Revenue
By finding leaks faster and more accurately, SoµndSens helps significantly cut down leak run-time. Its multi-point correlation system analyses network sounds simultaneously, delivering precise leak locations far quicker than traditional survey-based methods, reducing the chance of minor leaks escalating into costly burts.
The SoµndSens Difference
Overcoming Urban Noise Interference
Where other acoustic tools falter, SoµndSens cuts through ambient noise with precision, by combining strategic listening windows, such as overnight recordings, with multi-point correlation, isolating true leak signals fast. Advanced ML filters out background noise, reducing false positives & enhancing detection confidence.
Precision on Plastic Pipelines
SoµndSens is engineered for today’s mixed-material networks. Instead of relying on loud single point leak signal, it intelligently analyses the relationship between multiple sensors to reveal even the quietest leaks on plastic pipes. This smarter, more robust approach future-proofing leak detection capabilities.
Driving Lower Leakage Emissions
SoµndSens drives a shift toward low-carbon leakage management. By moving away from high-emission, reactive approaches such as premature excavation and pipe replacement, SoµndSens supports targeted, efficient repairs, directly lowering the carbon intensity of NRW loss reduction activities.
Specifications |
|
| Construction: | Tough durable glass filled plastic with robust waterproof seals. |
| Dimensions: | 060×50(mm)-2.4"x2.0" |
| Weight: | 0.9kg |
| Operating Temp: |
-20 to+60°C(-5 to +1409F] |
| Ingress Protection: |
IP68-10m for 24 hours |
| Memory: | Up to 15 minutes of audio data. |
| Delayed Start: |
Either start at a nominated time, on a schedule or after set delay period, e.g.;for unmanned night-time correlation. |
| Power (Battery Life): |
2 weeks(Rechargeable) under typical use. |
| Software: | MicroStream app. |
| Connectivity: | Bluetooth@. |
| Construction: | Hard wearing waterproof plastic cases with foam inserts for maximum protection. Wireless charging capability. |
| Dimensions: | 340x 300×150(mm)-13.4"x 11.8× 5.9" |
| Weight: | 3.0kg (with sensors). |
| Operating Temp: |
-20 to +40℃(-5 to +104°F] |
| Ingress Protection: |
IP54. |
| Storage: | Temperature when not charging:-20° to +60° |
| Platform: | Android and ioS. |
| Modes: | Standalone & DataGate modes |
| Sensor Compatibility: | Compatibility: Upto 8 sensors |
| Comms: |
Bluetooth®. |
| Map Support: |
Google and Apple maps. |
| Pipe Material: |
Asbestos Cement, Cast lron, Concrete. Ductile Iron, Copper, Lead, Ductile lron Concrete Lined, High-Density Polyethylene (HDPE). Medium-Densit Polyethylene (MDPE). PVC, Steel, or any other custom pipe material. |
| Minimum Phone Requirements: | • OS:Android 12/i0S 15 • RAM:4 GB • Display:>6" • Bluetooth@:Bluetooth@ LE • Device age:<5 years. |
| Recommended Phone Requirements: |
• OS:Android 13+(with current security patches)/ latest ios • RAM: 6 GB or more • Display:>6" • Bluetooth®: Bluetooth@LE • Device age:<2 years. |
