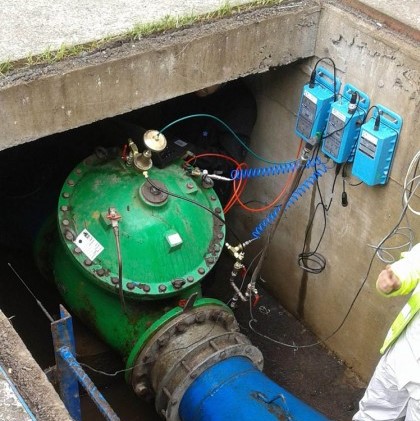

Pegasus 2

Pegasus 2 is an advanced pressure control system that utilises our innovative modem (capable of connecting via LTE-M, NBIoT, 4G, 3G and 2G) for reliable and low-powered two-way communication.

With the capability to set target pressure by time, flow or a combination of both (with different table settings per day), Pegasus 2 delivers a sophisticated level of targeted control, even on a time basis.

Pegasus 2 features a secondary channel for fast logging down to 25Hz. This is invaluable for investigating system transient events.

Applications

Pegasus 2 uses a Windows Tablet or PC based IDT app for easy set up and programming and is compatible with the PressView Cloud System for easy and convenient data access and remote configuration.

Pegasus 2 transmits data through an integral modem with 2G, 3G, 4G, NBIoT and LTE-M (Cat-1) options available.

In addition, PressView web based software provides location fleet mapping, installation photos, graphing, remote table control, alarm setting and maintenance alerting.

Individual user actions are logged and any changes made on the Pegasus 2 are logged against the user, making any actions fully accountable and historically registered.

KEY FEATURES

• Telemetry: NBIoT/LTE-M based cellular communication as standard with fallback 2G capability
• Modulated control: provides great flexibility to modulate pressure according to demand throughout the day with changes being made remotely
• Multi-point time based PRV: control without flowmeter 96 values per day, 7 days per week
• Pressure failsafe: set by user on installation, including manual safe override on site
• Intelligent pressure control: proven to minimise leakage and reduce the frequency of pipe bursts
• Latching solenoids: optional feature to fully vent the PRV top chamber in tight headloss or network fault conditions
• Integrated low cost telemetry: enables rapid monitoring and remote control as required
• Closed loop control: optional closed loop control automatically modulating pressure from remote critical point data
• System configuration: easy to set up locally via tablet or PC app and remotely via PressView Cloud Server
• Transient logging: high speed logging to 25Hz to identify network transient events
• Value Performance Monitoring: logging top chamber pressure and solenoid activations to continually monitor value performance
