vLoc3-Pro

Vivax-Metrotech

The vLoc3-Pro utility locator introduces new innovative tools for locating buried utilities assuring damage prevention while gathering information for analysis.

Enquire More



The vLoc3-Pro utility locator introduces new innovative tools for locating buried utilities assuring damage prevention while gathering information for analysis.

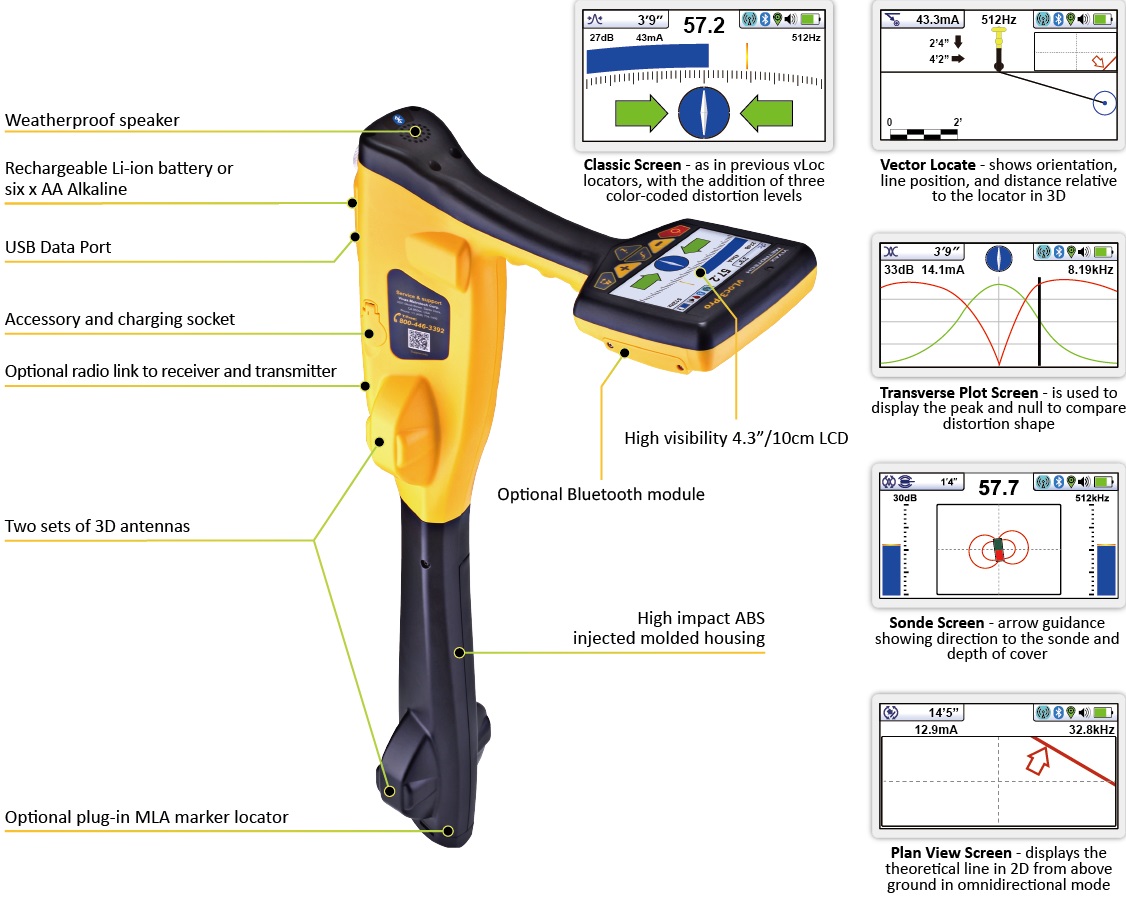

With two sets of screened 3D antennas signal distortion is easily detected and displayed on the bright full color display. Along with classic locate screens the vLoc3 series locators offer new locate perspective screens of Vector Locate for fully automatic non-walk over locating, Transverse Graph showing both peak and null simultaneously providing immediate measurement of signal distortion, Plan View showing the relative orientation of the cable at any angle, and a new graphical Sonde screen with guidance arrows leading to the sonde location even when it is vertical.

The highly user configurable vLoc3 series contains eight passive locate modes, fault-find mode, SD (showing direction of outgoing current), and a range of configurable frequencies from 16Hz to 200 kHz. Audio and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Plug-in-play options for the receiver include optional Bluetooth module useable with external GPS devices and EMS foot to locate buried markers.

Key Features

  • Color-coded EM distortion warnings
  • Offset vector locate mode
  • Optional receiver/transmitter link
  • Cloud-based data warehousing
  • Internal data logging
  • Optional Bluetooth connectivity



Uses Locating & pinpointing the position of buried pipes, cables, and sondes
Description Multi-purpose precision locator receiver
Environmental IP65

Weight

 4.6lbs (2.1kg)
Dimensions

12.6in(L) x 4.9in(W) x 26.6in(H) (321mm x 124mm x 676mm)
Display Type Transmissive 480 x 272 Pixel, 16-bit Color, High Visibility LCD, 4.3’’

Receiver Antennas

 Two sets of 3D antennas

Battery
  • Six x AA Alkaline batteries
  • Rechargeable custom Lithium-ion batteries with 100-240V AC mains charger

Battery Life
  • Alkaline – typically 12 hours intermittent use at 70ºF (21ºC)
  • Lithium-ion – typically 27 hours intermittent use at 70ºF (21ºC) (with full backlight

    turned on). Re-charging cycles approx. 500 times life cycle. Battery life varies with temperature

Operating Modes
  • Classic Locate (2-section Bar graph)

  • Transverse Graph Mode

  • Plan View (Omni Directional)

  • Vector Locate (Lateral Position & Depth)

  • Sonde Locate
Compatible Transmitters
Loc3-5Tx, Loc3-10Tx, Loc3-1Tx, Loc-5STx, Loc-5DTx
