CrossOver Series
SPH Engineering
Series of Ground Penetrating Radar systems

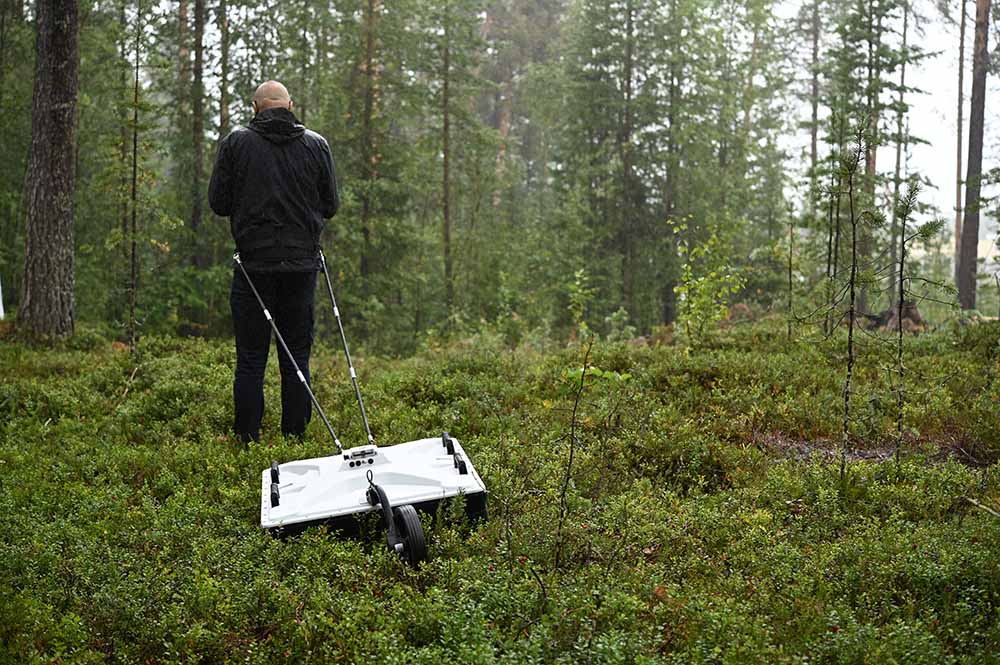

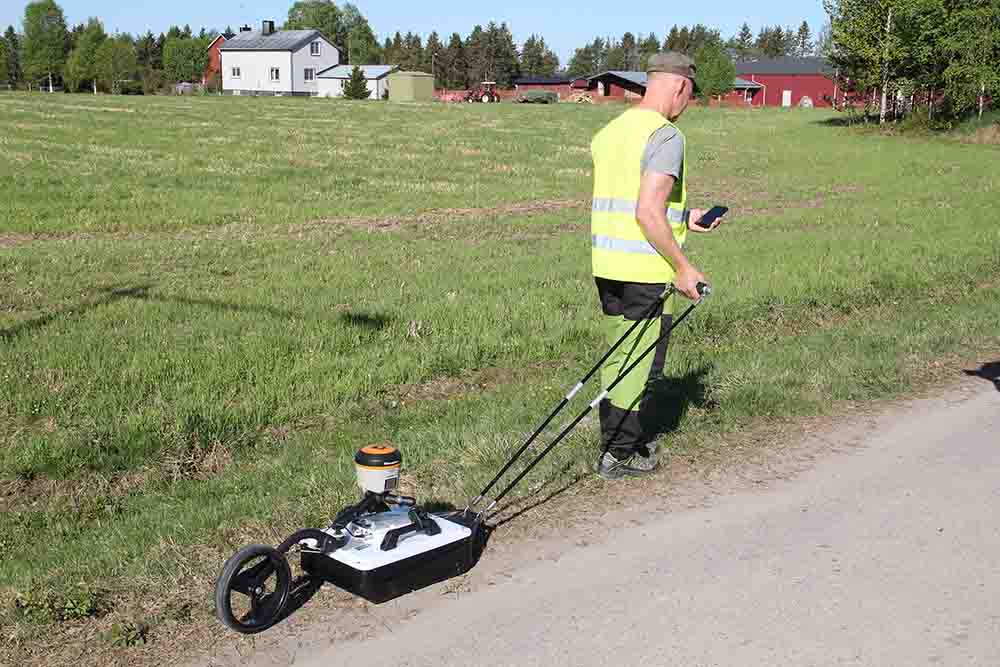

CrossOver is a general-purpose series of GPR-systems, in three different housings and with 6 separate frequencies in the range 70- to 800MHz. It is designed for the professional-geo community. It may be pulled or pushed in dedicated carts, by hand or by means of vehicles, at any speeds.
Each system comes as a true-dual frequency antenna with inbuilt control electronics and GPS-modules. The systems are controlled via Android-pads over a wireless link. It is based on real-time-technology which gives excellent depth penetration and bandwidth. Low power consumption gives 7 hours operational time, on one battery.
Antennas
|
|
|
|
CO4080 It incorporates two channels with ultra-wideband frequencies centered around 400 MHz and 800 MHz. Inbuilt GPS-unit. |
CO1760 It incorporates two channels with ultra-wide band frequencies centered around 170 MHz and 600 MHz. Inbuilt GPS-unit |
CO730 It incorporates two channels with ultra-wideband frequencies centered around 70 MHz and 300 MHz. Inbuilt GPS-unit. |
|
| Pulling kit |  |
|
|
| Push cart | |
|
|
| Measuring wheels | |
|
|
| External GPS mounting kit | |
|
|
Accessories
