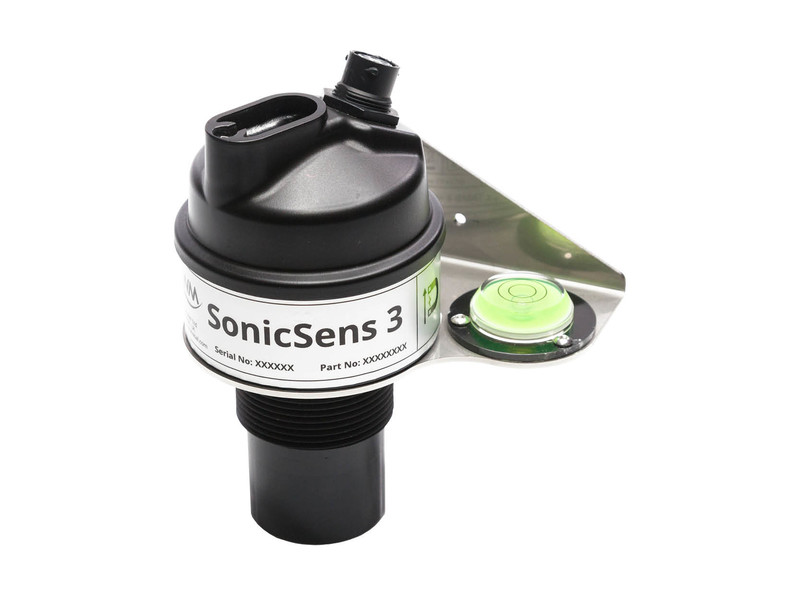

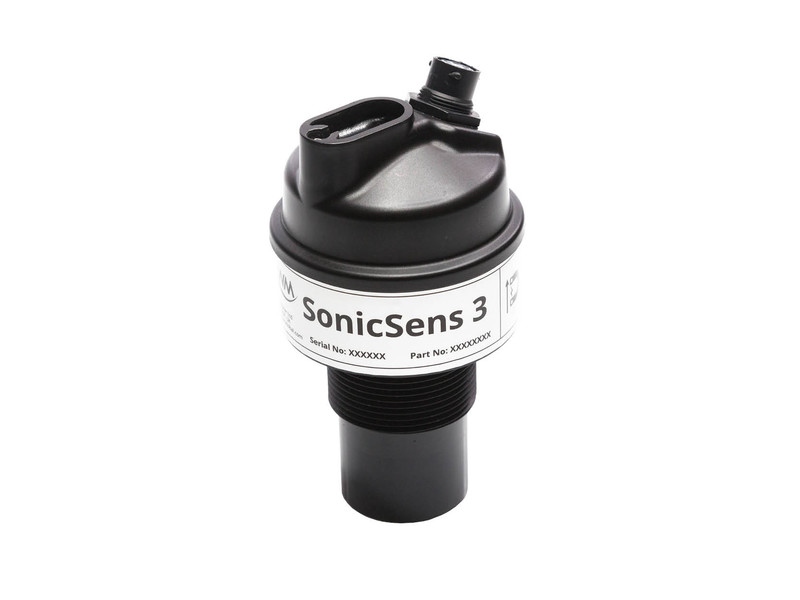

SonicSens 3

HWM

SonicSens 3 is an intrinsically safe level sensor developed for use in multiple applications, including sewer level monitoring.

Through the use of ultrasonic technology, SonicSens 3 avoids contact with its environment, reducing contamination and lowering maintenance requirements.

Compatible with multiple HWM telemetry data loggers, SonicSens 3 is the ideal solution for remote and challenging installations.

Enquire More



APPLICATIONS

  • The sensor capabilities of SonicSens 3 makes it the ideal sensor in many different applications, including:
  • CSO monitoring
  • incident prevention, blockage monitoring
  • reservoir levels
  • combined with velocity sensors for flow monitoring
  • level to flow conversion for fumes and weirs
  • Deployment of SonicSens 3 on complex sites is made possible by the advanced 'unwanted echo' filtering capabilities as well as flexible battery options that extend life and increase dial-in.

KEY FEATURED AND BENEFITS

  • Intelligent sensor: compatible with HWM telemetry data loggers, benefitting from the latest alarm, reporting and dial-in features
  • Dependable: the logger will send an alarm if measurements are not possible
  • Flexible range: two variants available covering ranges of 200mm-6m and 300mm-10m
  • Long battery life: 5 years at 15 minute sample rate
  • Fully waterproof: unit is IP68 rated
  • Simple installation: multiple pre-set options in software, including automatic level/flow conversion
  • Power options: unit powered by logger, external battery pack available to extend system life and support more frequent call-in
  • Unwanted echo filter: logger can be set up via desktop IDT software to ignore unwanted echoes such as ladder rungs, supporting deployment in challenging installation sites
  • Certification: certified for use in Zone 0 hazardous areas:
    • Intertek ITS19ATEX205070X & IECEx ITS 19.0030X
    • Ex ia IIC T4 Ga (-20oC ≤ Ta ≤ +60oC)

Ultrasonic Sensor

Ultrasonic Measurement Measurement Range:
200mm to 6m, or 300mm to 10m

Resolution 1mm (1/25")
Built in temperature compensation

Accuracy in air:
± 0.2% @ 3m (6m sensor)
± 0.1% @ 6m (10m sensor)
± 0.1% @ 10m (10m sensor)

Beam Angle: 10° at -3dB boundary

Operating Temperature
-20 to 60°C (-5 to +140°F)

Unwanted echo (obstructing) filtering
Rating ATEX/IEC certified to Zone 0
Construction Potted PVDF plastic enclosure
IP68 submersible, stainless steel 316 brackets
Connection Serial communications, powered from logger
Power Management >5 years battery life at 15 minute sample rate,
Accelerated sampling on alarm available and alarm triggered
Dimensions 145H x 78D (mm)
Weight 700g


Data Logger

Measurement Interval Down to 30 seconds
Software Configurable using PC IDT software

Configuration of obstruction (unwanted echoes) filtering for difficult installations
Power Replaceable external power source available
