Intelligens Ultrasonic Level

dBi HART sensor

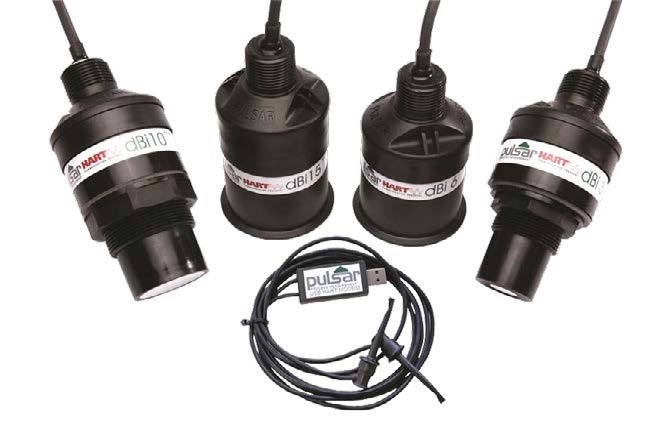

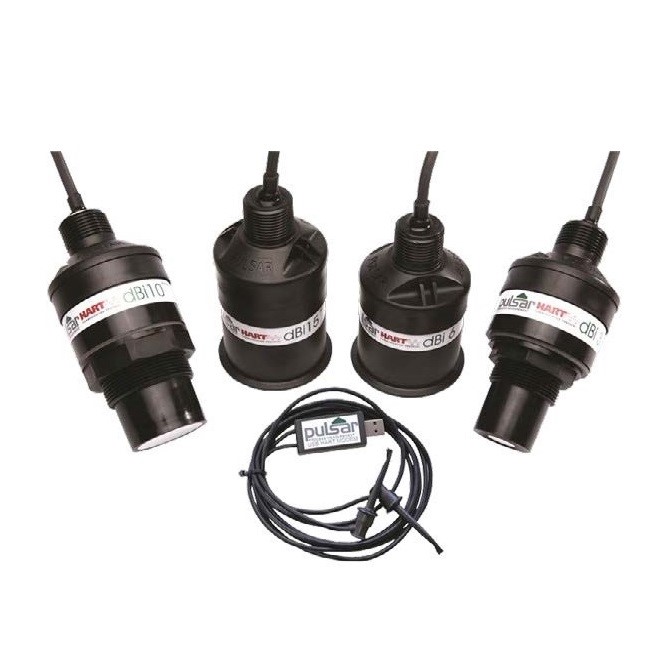

The Pulsar dBi HART Transducer Series are a range of self-contained, intelligent non-contacting ultrasonic level measurement transducers which make use of HART communication protocols to make plant integration simple. Four range choices are available with either 3m, 6m, 10m or 15m range (10ft, 20ft, 33ft or 49ft).



Can be specified in various formats to suit the application, for example flanged, PTFE coated for corrosive applications, fitted with foam face or submergence shield and with threaded noses for easy installation.

Accurate level measurement

dBi HART Transducers signal level measurement either via 4-20mA proportional to the measured value or using the HART protocol, modulated tones on the 4-20mA (1200/2200Hz). dBi HART Transducers with Version 7 protocol offer increased accuracy due to temperature compensation. dBi HART Transducers can also be used to convert your level to volume, with their inbuilt library of typical tank shapes or using their ability to use a 16-point curve fit for non-standard shapes. The output from the unit can represent distance, level, space or volume depending on your requirements.

Programming dBi HART Transducers

Pulsar's dBi HART Transducers can be programmed as stand-alone devices using a hand-held calibrator or as low-power measuring devices, using HART as the mechanism for data collection, via Pulsar's PC interface called dBi HART PC. This PC interface can found within Pulsar's PC Software Suite (free to download however a security dongle is required for operation).

DATEM Echo Processing

Pulsar's dBi Transducer Series with HART communication protocol features Pulsar's world-leading DATEM echo processing software. DATEM, Digital Adaptive Tracking of Echo Movement, allows the system to zero in on the echo from true target and follow it as it moves up and down the vessel, ignoring the stationary echoes from other elements in the measurement path. Pulsar's HART dBi Transducer Series give reliable and accurate measurement in applications where other manufacturer's equipment would not work.

Features:

  • Self-contained
  • Two-wire
  • Solids or liquids applications
  • DATEM digital echo processing
  • Various mounting options
  • ATEX Ex mb Zone 1 standard. Option of ATEX Zone 0 I.S.
  • Use standard programming tools or Pulsar's dedicated PC system
  • FM/FMC approval
Operating temperature range -40°C to +80°C Process Temperature (-40°F to +176°F)
Ingress Protection IP68


Model Dimensions Weight Measurement Range Frequency Beam Angle Resolution

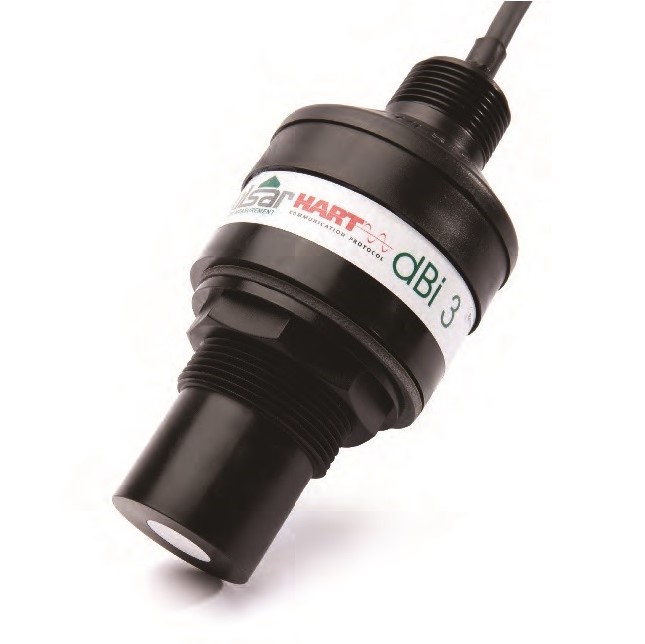

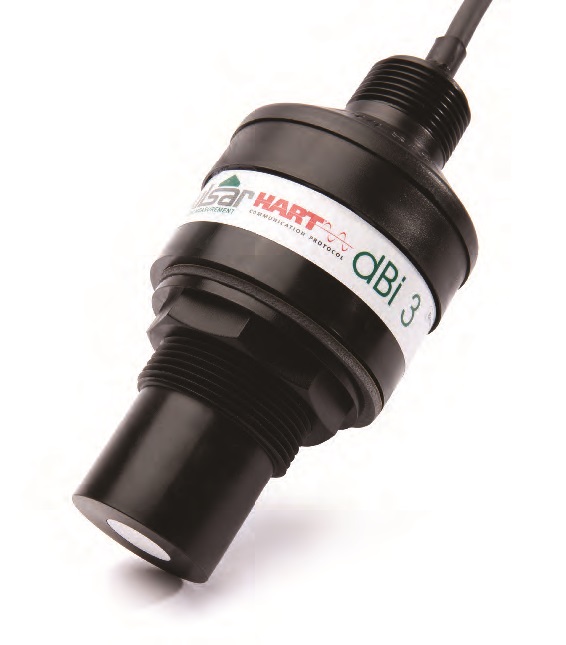

dBi3 77mmD x 134mmH
(3 x 5.3inch)
1kg (2.2lbs)
0.125-3m (5”-10ft)
125KHz
<10°
1mm (0.04”)
dBi6
86mmD x 121mmH
(3.38 x 4.75inch)
1.2kg (2.7lbs)
0.3-6m (1”-20ft)
75KHz <10°
2mm (0.08”)

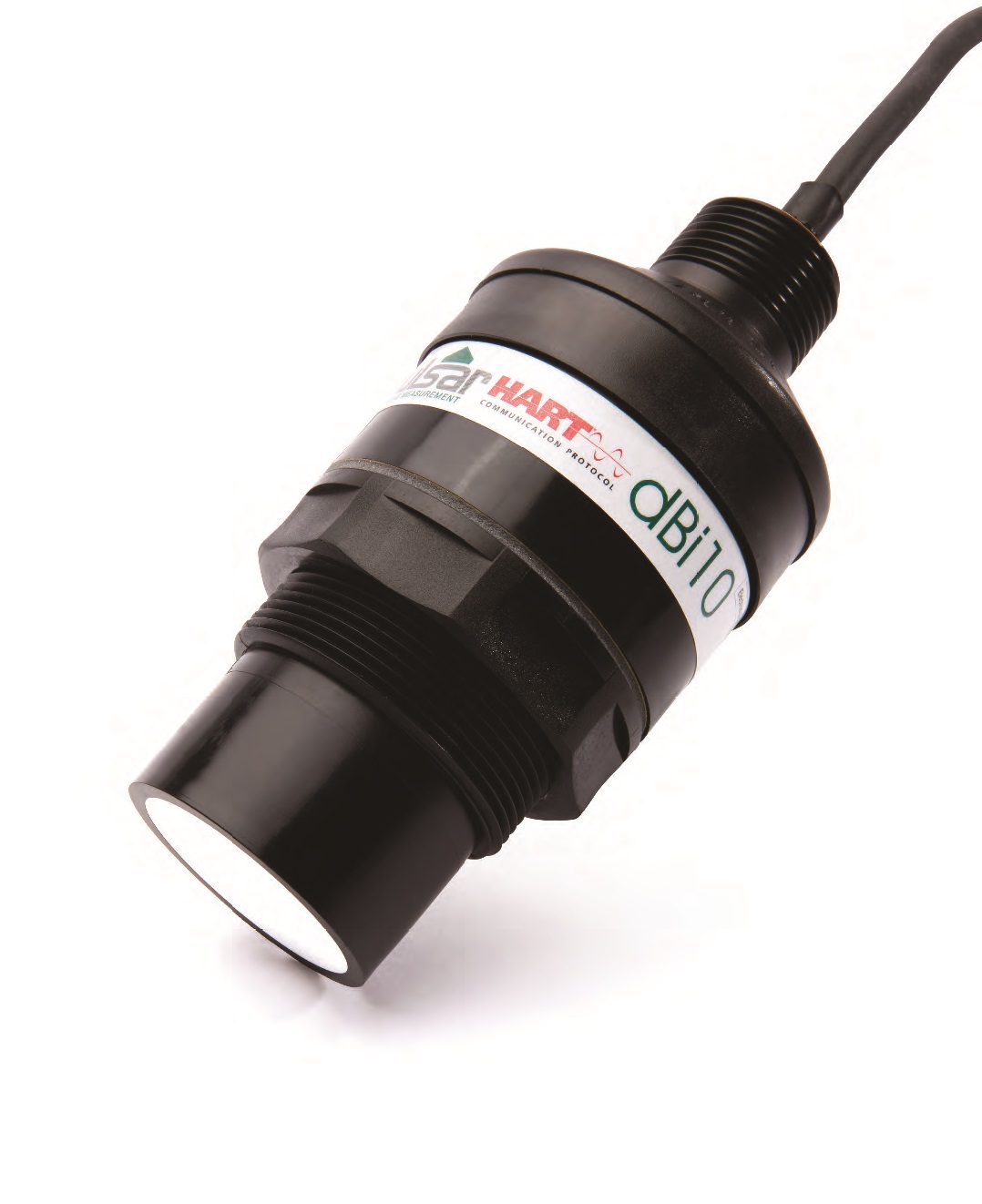

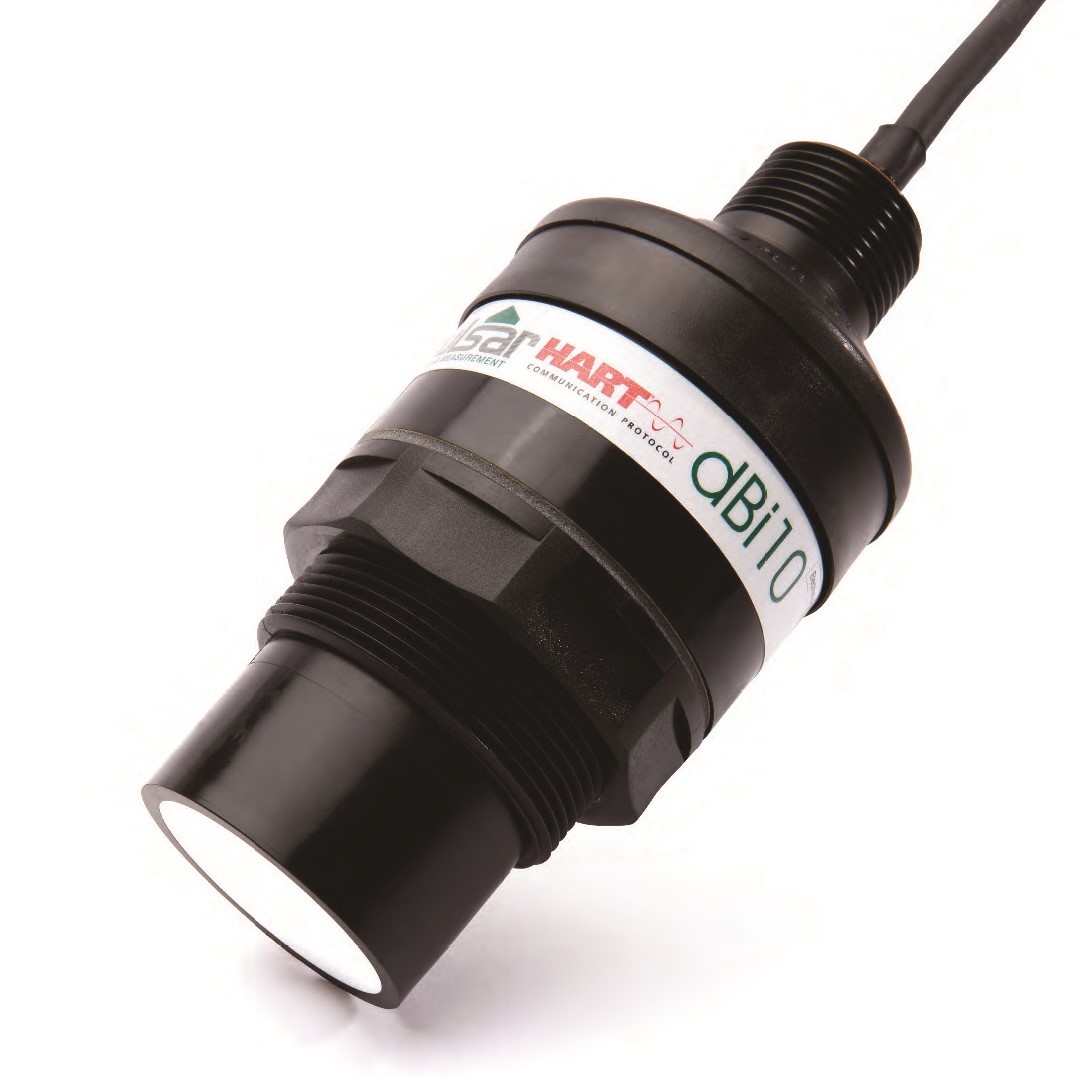

dBi10
86mmD x 121mmH
(3.38 x 4.75inch)
1.3kg (2.9lbs)
0.3-10m (1”-33ft)
50KHz <10°
2mm (0.08”)
dBi15
86mmD x 135mmH
(3.38 x 5.32inch)
1.4kg (3.1lbs)
0.5-15m (20”-49ft)
41KHz <8°
5mm (0.02”)
