Overflow Detector CSC

ijinus

Capacitive technology with air referential

Management and monitoring of fouling

Sealing: IP68

Dynamic analysis of thresholds

TOR NO/NF, MODBUS

Compatible with PLC and process

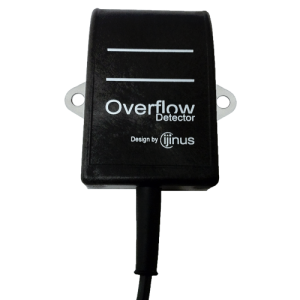

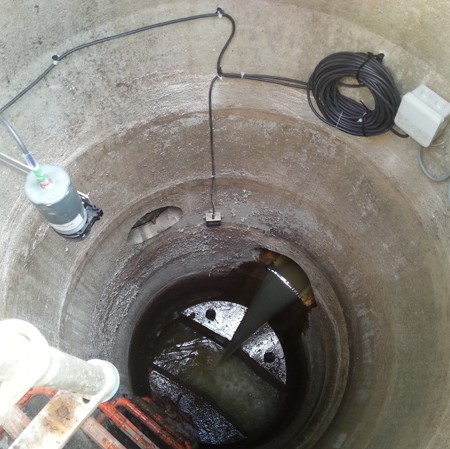

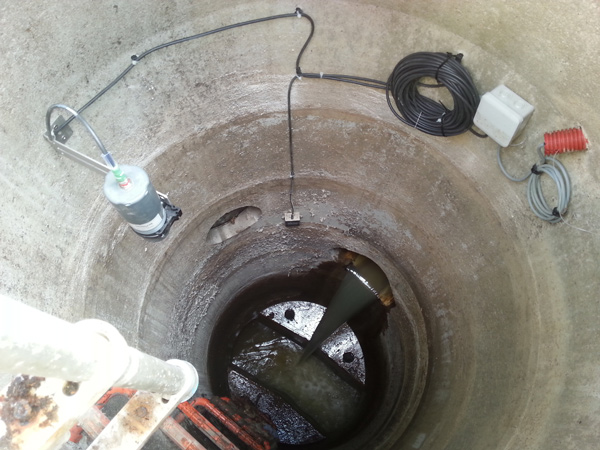

IJINUS presents the first overflow detector that integrates the CapAir ® technology, IJINUS patent, simplifying installation and reducing maintenance considerably compared to a resistive and traditional capacitive technology. It detects the presence of water (or any conductive fluid) above a threshold (ON/OFF state). The detection area is clearly marked on the case by 2 white lines which allows a precise installation. The user will simply position the detection area at the threshold level required. The CapAir ® technology, capacitive measurement with air referential, enables reliable and unequalled water overflows detection in the toughest conditions. For reliable detection, the capacitive measurement is temperature compensated

Communication by GSM/GPRS

  • The CSC, connected to an Ijinus sensor or data logger sends data and alarm via GSM to SCADA or our web platform V2.ijitrack.com
  • Communication by Modbus
  • Associated with a PLC the CSC enables starting or stopping lifting pumps.
  • The CSC can also be connected to a Ijinus data logger by a Modbus connection.
  • Activation of a water sampler programThe CSC modulates the measurement frequency of IJINUS level sensors, saving its energy and increase battery life.
  • Activation of a water sampler program can be done with the wired overflow detector.
  • Compatible Isco / Sigma sampler

Application

  • Drinking water and wastewater
  • Self-monitoring of sewer overflows
  • Monitoring and managing storage tanks
  • Flood prevention

Specifications

CSC-XX-TOR-L

CSC-XX-MOD-L

Detection threshold

Factory setting :80 % on dynamic threshold for wastewater, adjustable

Factory setting :80 % on dynamic threshold for wastewater, adjustable

Update time

Factory setting : 10s

Adjustable in ms

Factory setting : 10s

Adjustable in ms

Temperature compensation

Yes

Yes

Data logger

No

No

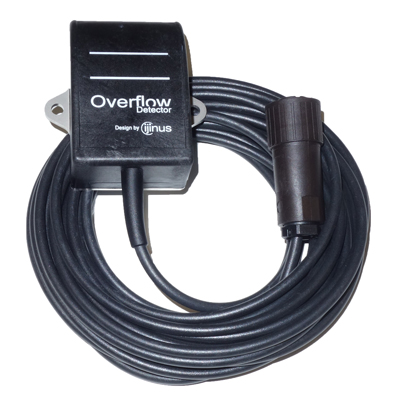

Cable

5m or 10m

5m or 10m

Connector

Male M12, 5 points

Male M12, 8 points

Output

normally opened contact

normally closed contact

normally opened contact

normally closed contact

Modbus RTU RS485

Switch 5…16Vdc/1A

Operating temperature

-40 …85°C

-40 …85°C

Sealing

IP68

IP68

Energy

External : 5Vdc

or

Internal : Bat int: 3,6V 2Ah

Autonomy : 10 years at 15°C

External : 5Vdc

or

Internal : Bat int: 3,6V 2Ah

Autonomy : 10 years at 15°C

Technology

Capacitive with air referential

IJINUS patent

Capacitive with air referential

IJINUS patent

Options : Food industry compatible

Yes: white ABS housing

Yes: white ABS housing

Options : Atex

II 3G

Ex ic nA IIB T4 Gc

Tamb : -20°C…+60°C

Compatibilities

The CSC with output contact is connectable to samplers and autonomous data loggers like Perax P16, Sofrel LS, Hydreka, Primayer…….

The CSC with Modbus output is connectable to PLC with Modbus RTU connector like

ABB, ROCKWELL, Siemens, Sofrel….
