Solutions > Network Management > COMLog

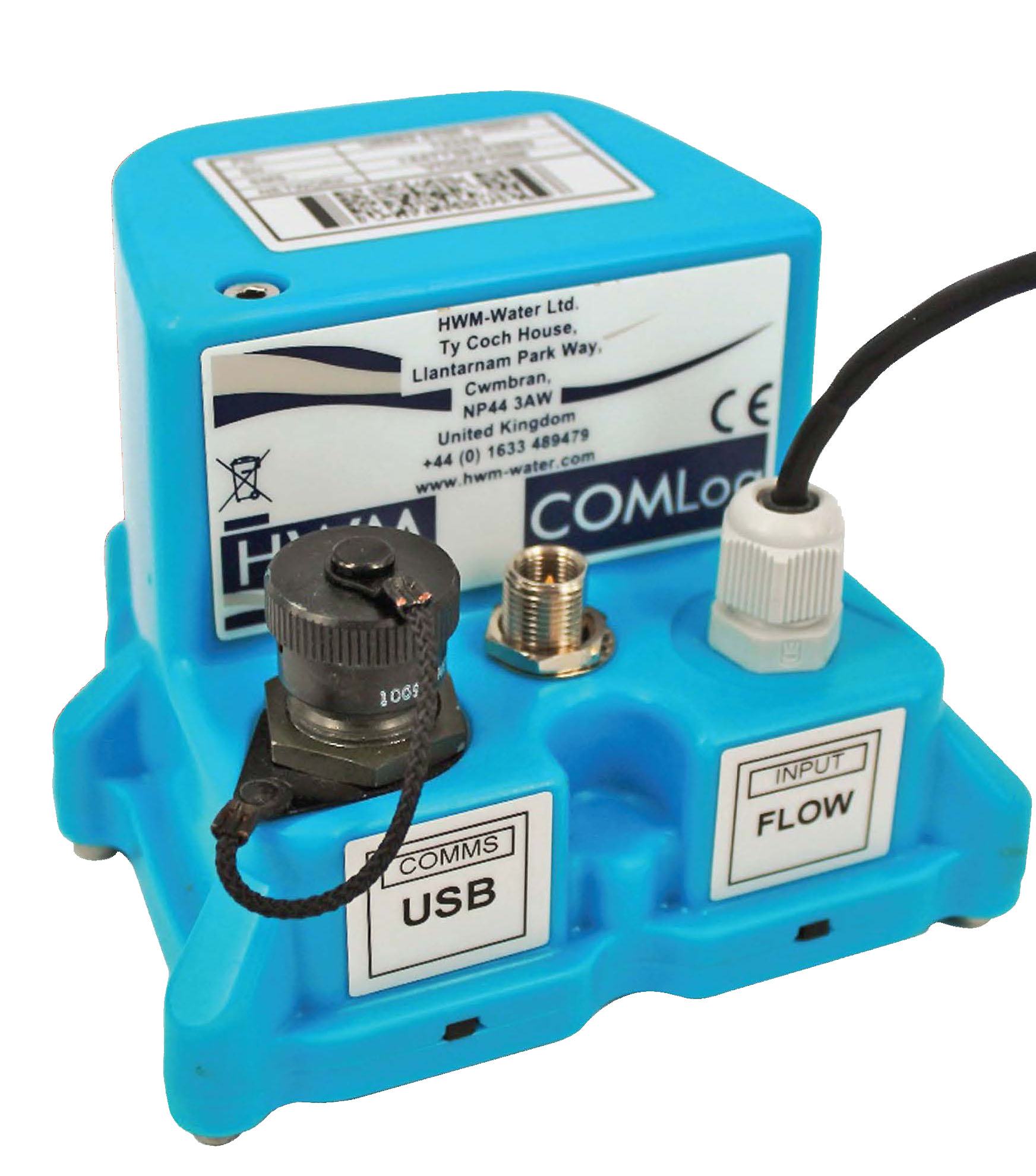

COMlog provides businesses,asset managers and service providers with a cost-effective way to manage energy consumption,reduce energy costs and cut carbon emissions.

With more than one hundred thousand data loggers in operation worldwide,HWM is a market leader in the design,manufacture and supply of GSM/GPRS data logging solutions for smart metering in water and energy.


   Key Features and Benefits

  • Excellent value:Highly cost effectiv and reliable
  • Accessible data:Near real time data at low cost
  • Flexible alarm modes:HIgh Flow,Low Flow and Profile Alarms
  • East software integration:Designed for easy Integration into 3rd Party software applications via Datagate AP1
  • Online data viewing:HWM Online web viewing package
  • Long term monitoring:Typical 5 year battery life
  • Reliable,flexible communications:Range of specialist external antennas available
  • Over the air upgrade/programming:

    Ensuring future compatibility without the cost of a site visit

  • Responsive:Accelerated dial in on alarm


COMlog is compatible with any meter that has a volt-free pulsed output and uses accumulative pulse counting technology to calculate index readings against a known volume.

This innovative logger uses the latest integral GPRS technology to provide rapid data transmission at low cost Low power electronics enable the long battery life to be maintained even with increased transmission rates.

The replaceable internal batteries eill typically power the device for over five years when data is transmitted every eight hours.

COMlog is also supplied with an external antenna connection that enables the use of a range of specialist antennas to address the most extreme low signal level locations.

Logger Features

Memory                Primary recording 2 million readings.

Variable sample rate 1 sec to 24hrs (please note that this may affect battery life and communications cost).

Alarms Lower/Upper Limit,Min NIght flow,Rate Of Change,Channel Difference,In/Out of Band alarm types.6 programmable conditions sets available sending SMS alarm message to a mobile phone.
Logger ID Up to 7 alphanumerric characters.Also readable factory set serial number in firmware.
Clock; On board 24 hour real time clock with date facility.
Internal Cellular


GPRS to HWM DataGate or customer specific data server,multiple messages per day.Quad band modem supplying 850/900/1800/1900MHS bands 3G Compatible modem supporting 850 900 AWS 1700,1900,2100.

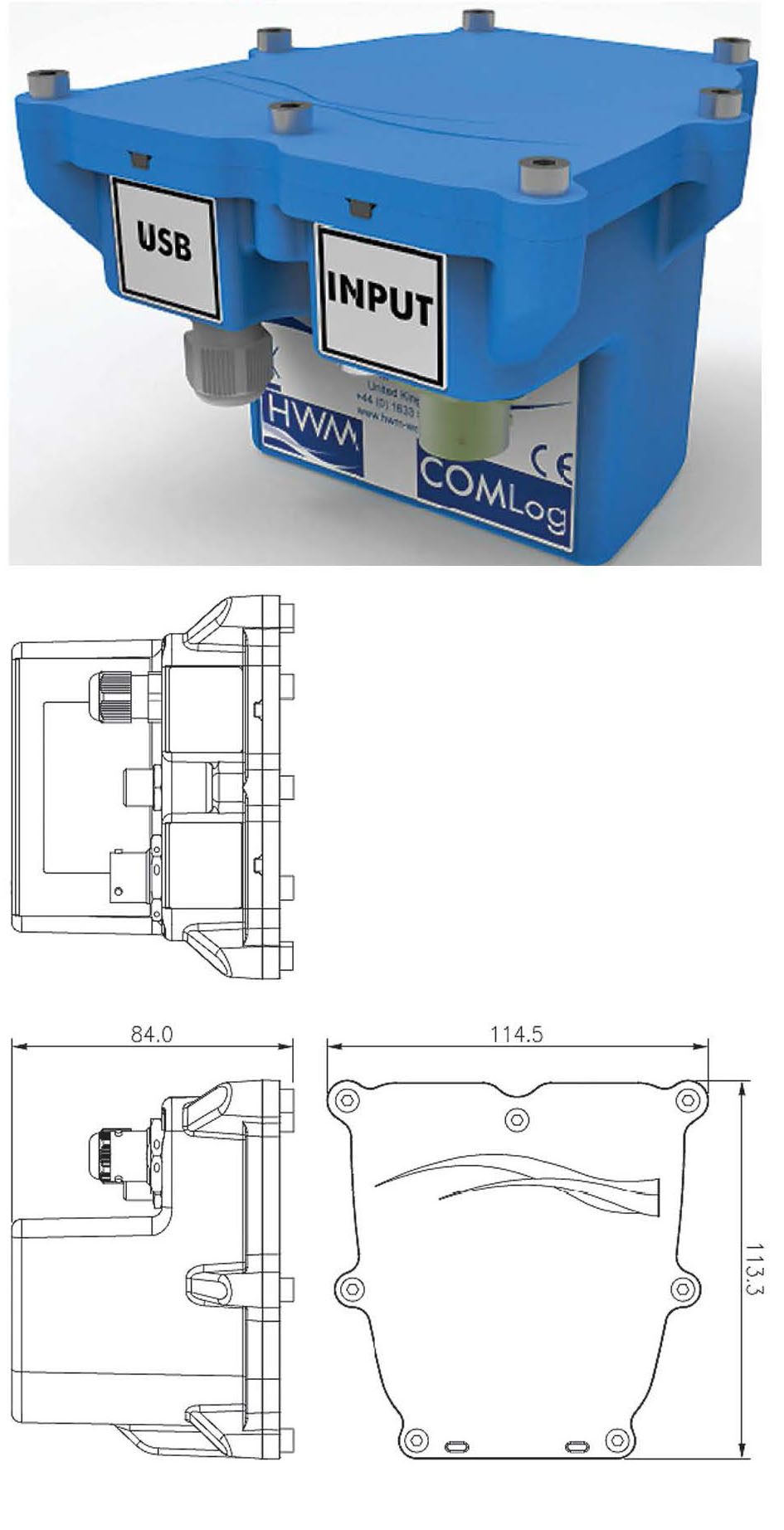

Dimensions 84mm×114.5mm×113.3mm
Construction Tough ABS plastic enclosure(colour Blue).
Weight 570g
Operating Temp -20 to +70℃(-5 to +160℉)
Ingress portection IP68 submersible
Power Lithium Thionyi-Chloride cell operational for 5 years under standard operating conditions,complete with low battery alarm.

Sensor Input options

Digital                   One or two bi-directional pulse input

Reed swith contact closure type or other pulse input

Up to 64 pulses per second.
